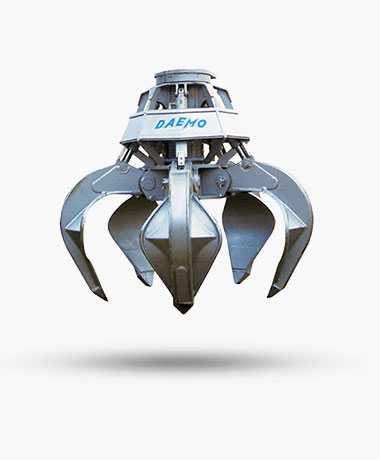

Orange Peel Grab for Light Weight Applications
DMSG800
| Technical Specifications | |
|---|---|
| Excavator Weight Class : | 18 ~ 25 Ton |
| Operating Weight : | 1200 kg |
| Capacity : | 0.8 m3 |
| Max Clamping Force : | 10.8 ton |
| A Max Opening width : | 1820 mm |
| B Closing width : | 1290 mm |
| H Opening length : | 1630 mm |
| H1 overall length : | 1905 mm |
| Standard Tines no : | 5 nos. |
| Suitable Tata Hitachi Models : | EX200LC, EX210LC, ZAXIS220LC, ZAXIS220LC–M |

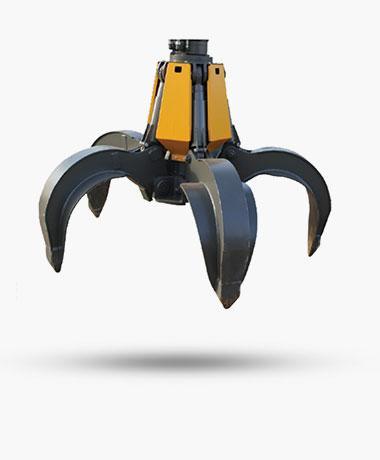

HiOG – 600.25
| Technical Specifications | |
|---|---|
| Excavator Operating Weight (Ton)(**) : | 18 – 30 Ton |
| Grab capacity : | 0.6 m3 |
| Dead weight in kg by Tines design : | Open – 1245 Semi-Open – 1310 Closed – 1395 |
| Number of Tines (**) : | 5 nos. |
| Max. lifting capacity : | 3.5 Ton |
HiOG – 800.25
| Technical Specifications | |
|---|---|
| Excavator Operating Weight (Ton)(**) : | 18 – 30 Ton |
| Grab capacity : | 0.8 m3 |
| Dead weight in kg by Tines design : | Open – 1270 Semi-Open – 1330 Closed – 1440 |
| Number of Tines (**) : | 5 nos. |
| Max. lifting capacity : | 3.5 Ton |
HiOG – 2000.28-S
| Technical Specifications | |
|---|---|
| Excavator Operating Weight (Ton)(**) : | 20 – 40 Ton |
| Grab capacity : | 2 m3 |
| Dead weight in kg by Tines design : | Open – 2210 Semi-Open – 2380 Closed – 2700 |
| Number of Tines (**) : | 5 nos. |
| Max. lifting capacity : | 6 Ton |
* 5 no. Tines are standard. ** No. of tines can be changed depending upon the material size & shape. *** As per Excavator Arm width & Arm pin diameter
